Thermal Energy Storage |
|
|
Description
The thermal storage system is of 1600 Rton-hour which is used to supplement the chiller plant during "on-peak" period (09:00 to 20:59) by discharging the cooling energy stored inside the PCM panels.The PCM panels are charged up by chilled water which is generated by the chiller plant during the "of-peak" period (21:00 to 09:00). The Max. kVA demand charge in the electricity tariff can be reduced. In addition, energy saving of 116,325 kWh was achieved in year 2010 (equivalent to reduction of carbon emission by planting 2,764 trees) because chiller plant can run more efficiently in off-peak hours. |
|
Location
Roof, Bank of China (Hong Kong) Complex
|
|
Notes
Due to safety reasons, site visit can be arranged by advance booking.
|
|
Enquiry
Mr. P K Chan (CDO)Tel: 3442 6908 Email : [email protected] |
|
More Information

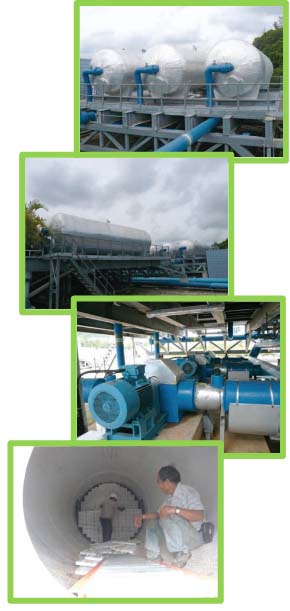

The system comprises of 6 sets 2.2m internal diameter storage tank storage 31,920 pieces of PCM panels. 3 sets of chilled water pumps are under variable speed drive (VSD) control for system charging and discharging.
|
