By adopting the above advanced detection mechanisms, any attack passing through the firewall can then be caught by the IPS. Depending on the actions reacted against the detected intrusion, an IPS can be configured as follows:

Roles of Firewall and IPS

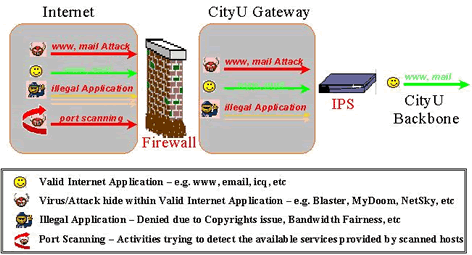

Although the IPS can detect a large number of Internet attacks, it cannot replace the firewall. IPS and firewall should work together to provide maximum protection to the network. In fact, they play different roles in safeguarding the network where one complements the other:

Features of IPS in CityU

In the following section, we shall introduce the features of the IPS deployed in CityU. With the help of real examples, it shows how the IPS can protect the CityU from daily Internet attacks.

1. Detect and Report Intrusion in Real Time

The mission of the IPS is to detect intrusion once it is detected. As it needs only a few packets to compromise a system, the IPS must block the attack in real time. On the other hand, not all detected intrusions are critical, some of them are informational and there is no need to block the traffic. As a result, we need an interface to define the policy of the IPS. Based on the severity of the attacks, we can report, log or drop the intrusion based on our pre-defined IPS policy.

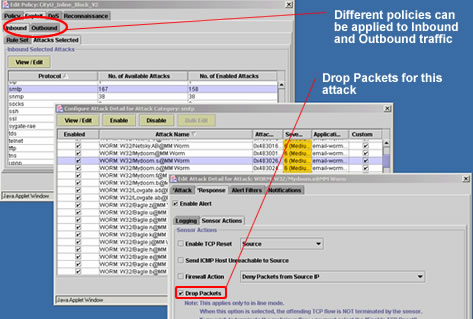

As shown in Figure 1-1, a network administrator can define the blocking policy for each intrusion. Different policies can be applied for both inbound and outbound attacks.



Figure 1-1 Policy Editor to define IPS policy (The above policy will drop Incoming MyDoom.S Worm)

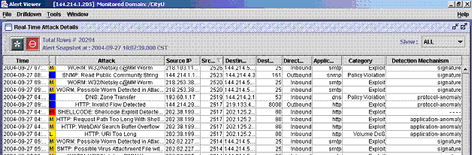

Based on the defined policy, the IPS will detect and block the intrusions accordingly. A real-time console will display the detected attacks as shown in Figure 1-2 below.



Figure 1-2 Real Time detection of Intrusion

2. Provide a flexible and configurable real time console for attack Query and Correlation

Since there are so many intrusions detected everyday, we need a flexible and configurable interface for the display, query and backtrack of the attack database. An example of the real-time console has already been shown in Figure 1-2.

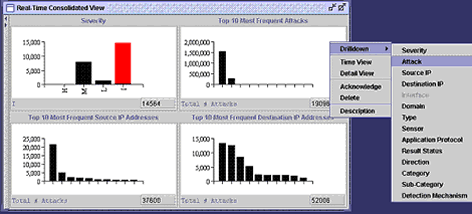

In addition, intrusions can be identified according to protocols, OS, severity, direction, source IP address, destination IP address; the real-time console should be able to manipulate the attack database based on these properties. This feature is shown in Figure 2-1 below.





Figure 2-1 Attacks in Real-Time Console can be manipulated according to different fields

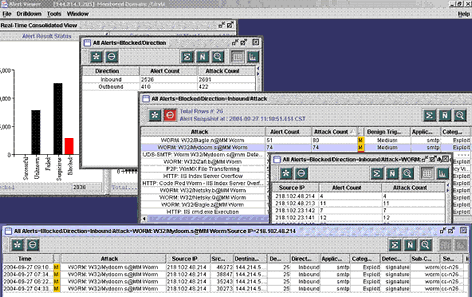

Furthermore, the attacks may have worked in sequence in order to compromise a system. We may want to group or drill down some of the inter-related packets in order to study the attacking mechanism. Figure 2-2 shows how the real-time console of the IPS can provide this function.





Figure 2-2 DrillDown View of an attack (Blocked->Inbound->MyDoom.S Worm->Source IP)

3. Protect against DDoS attack

Distributed Denial of Service (DDoS) is an attack that makes use of a large number of hosts to generate many simple but fast network packets to a few hosts. This results in a large volume of network traffic or connections reaching the destination host(s) which render the target machine(s) run out of its capacity to handle its normal services - a denial of services.

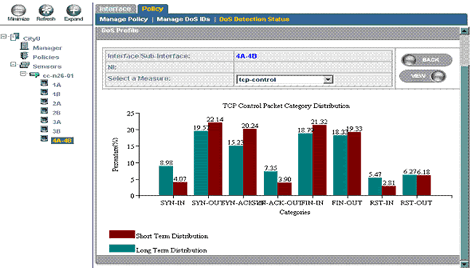

As mentioned before, every single attack in a DDoS is very simple and would not be normally classified as an attack. In order to detect such an attack, IPS will need to baseline normal traffic volume and report a DDoS attack once the traffic deviate greatly from the normal traffic. Figure 3 illustrates how the IPS detects a DDoS attack.



Figure 3 DDoS detection mechanism - referring to baseline traffic statistics

4. Automatic update of attack Signatures

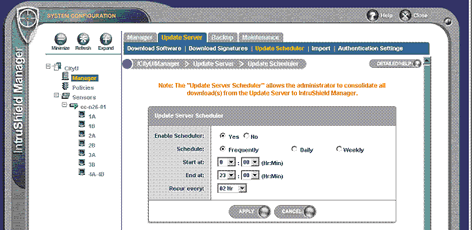

Like anti-virus software which requires the latest virus signatures to protect against new viruses, IPS also needs to update the attack signatures from time to time. This should be done automatically and transparently to the network administrator. The scheduled updates of signatures are shown in Figure 4 below.





Figure 4 Scheduled Tasks to update attack signature automatically

5. Capture attack packets

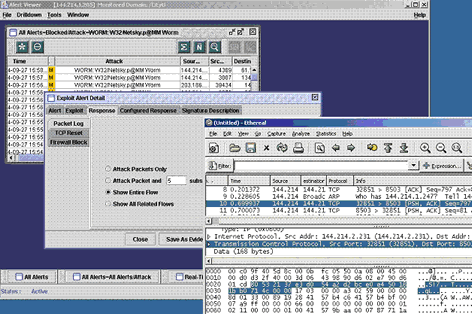

In order to study the details of intrusion and provide evidence for the attacks, it is very important to capture the attack packets for further reference. Figure 5 shows just how it can be achieved in the IPS.





Figure 5 Intrusion detected can be captured and displayed using Sniffer Format

6. Generate Management and Summary reports

All network management system must provide both summary and detailed reports to record jobs done. The IPS provides both real-time and scheduled reports to network administrators based on the attacks stored in the attack database. The generated reports can be displayed as HTML documents or saved as PDF files.

Conclusion

With the wide spreading of viruses, worms over the Internet, the security protection at the CityU Internet gateway was indeed a very serious concern. In view of this, the CSC had deployed a number of measures and the latest technologies to handle the Internet security issue.

The use of both firewall and the newly deployed IPS has shown that many Internet attacks have been successfully blocked. This results in a more reliable and secure Internet environment for all users of CityU.

However, everyone in CityU should also take the responsibility to protect his/her own computers by applying the latest patches, updating the latest antivirus software, etc. This simple but important measure is always the key to enhance the total secure level of the CityU network and thus improves the productivity of all members of the CityU.
